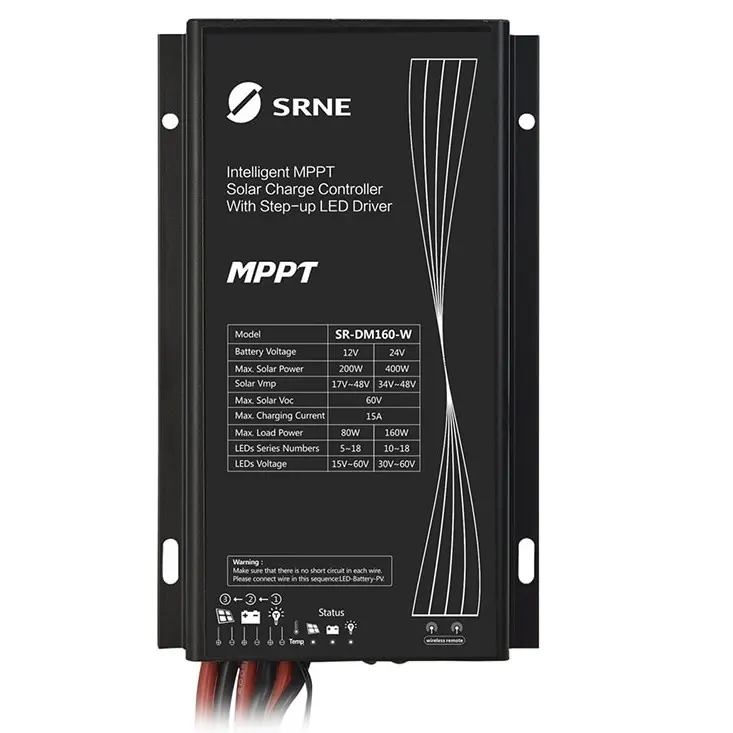

SR-DM160 12/24V 15A MPPT Solar Regulator with LED Driver

Overview

The DM series waterproof all-in-one MPPT constant current controller integrates MPPT solar charge management, LED step-up constant current drive and other functions. Ideal for lead-acid battery / lithium battery / colloidal battery, it is widely used for solar street lights, solar garden lights, etc., providing high reliability, high efficiency, high precision, ease of installation and maintenance and other benefits.

Features:

Using MovingTrack MPPT maximum power tracking technology, higher tracking efficiency and faster speed

Both lead-acid battery and lithium battery are applicable, operating parameters can be set by remote control

Using UltraGreen power control technology with extremely low power consumption and sleep current

Lead-acid battery multi-stage constant voltage charging with temperature compensation;

10-period programmable load power/time control;.

Battery charge and discharge high and low temperature protection, with operating temperature settable;

High precision digital step-up constant current control algorithm, ensuring high efficiency and highconstant current accuracy;

A variety of intelligent power modes are available for choice, with load power adjustable automaticallyaccording to the battery level;

Infrared wireless communication, allowing for setting/reading parameters, reading status, etc

Multiple protections such as battery/PV reverse polarity protection, LED short-circuit/open-circuit/limitedpower protection, etc;

Extensible to IoT remote communication monitoring function;.

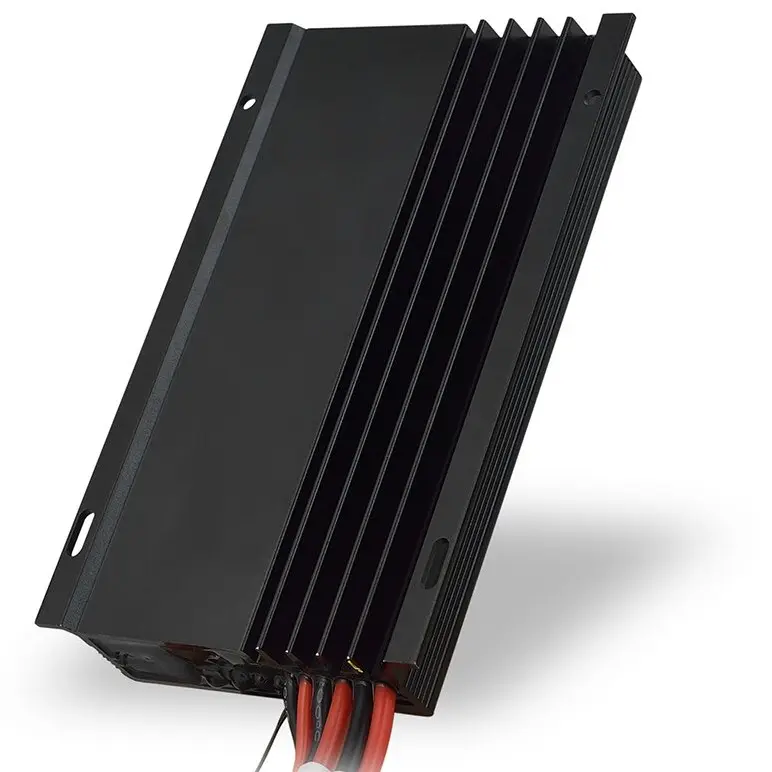

Full aluminum housing, IP67 waterproof rating, applicable to a variety of harsh environments.

Specifications

Model: DM120

System Voltage: 12V/24V

Load Voltage:15-60V

Maximum Charge Current: 15A

MPPT tracking efficiency: >99%

IP Rating: IP67

Weight:510g

Controller dimensions(mm):142*88.3*24.5
