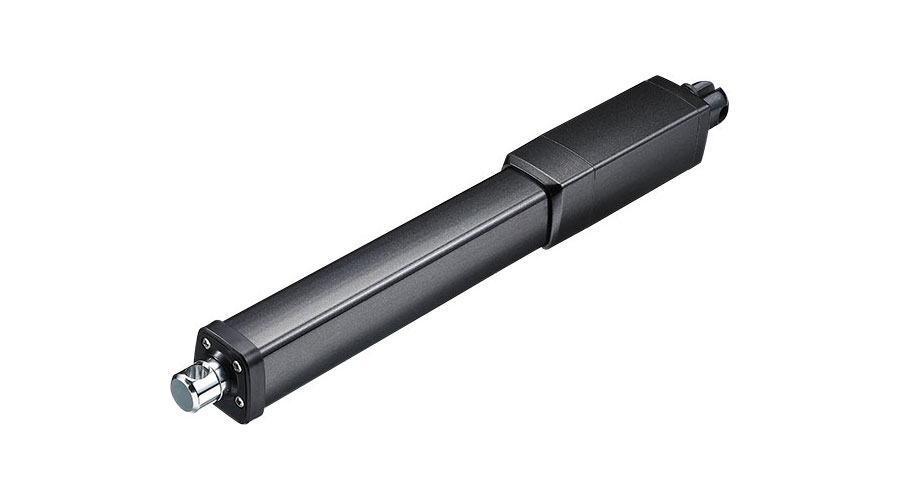

JP4-4A70-001 Linear Actuator

General Features

• Max. load: 4,500N (push); 3,000N (pull)

• Max. speed at max. load: 2.5mm/s

• Max. speed at no load: 27.5mm/s

• Retracted length: ≥ Stroke + 289mm

• IP rating: IP69K

• Certificate: UL73

• Stroke: 20~1000mm

• Output signals: NPN Hall sensor (5~36V input) *2

• Voltage: 12/24V DC; 12/24V DC (PTC)

• Color: Black, grey

• Operational temperature range: -5°C~+65°C

• Operational temperature range at full performance: +5°C~+45°C

• Storage temperature range: -40°C~+70°C
