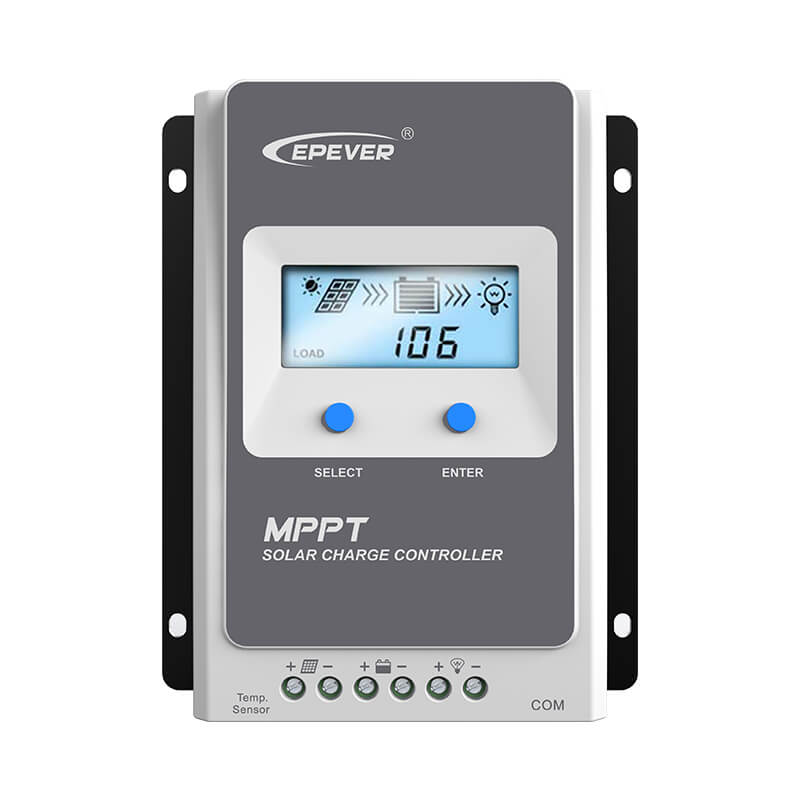

EPEVER 12V 40A MPPT Solar Charge Controller

Tracer4210AN Technical details:

Rated charging current: 40A

System Rated Voltage: DC 12V/24V Automatic identification.

Battery Voltage Range: 8V ~ 32V

Maximum open circuit voltage: DC 100V

Max. PV Input Power: 520W/12V, 1040W/24V

Terminal: 6 AWG (16 mm 2)

Recommended cable: 6 AWG (16mm 2)

Dimensions: 252 x 180 x 63 mm

Weight: 1.63 kg

Protective function:

Over current/PV power supply; PV short circuit; PV reverse polarity; night reverse charging.

Battery reverse polarity, battery overvoltage, battery overload, battery overheating, overheating controller

Low temperature lithium battery; charging short circuit; charging overload; TV high voltage transiters

Package includes:

1 x 40A MPPT Solar Charge Controller (Tracer4210AN)

1 x Battery Temperature Sensor Cable (Model: RTS300R47K3.81A)

1 x Temperature Sensor (Model: RT-MF58R47K3.81A)

1 x User manual (English).
